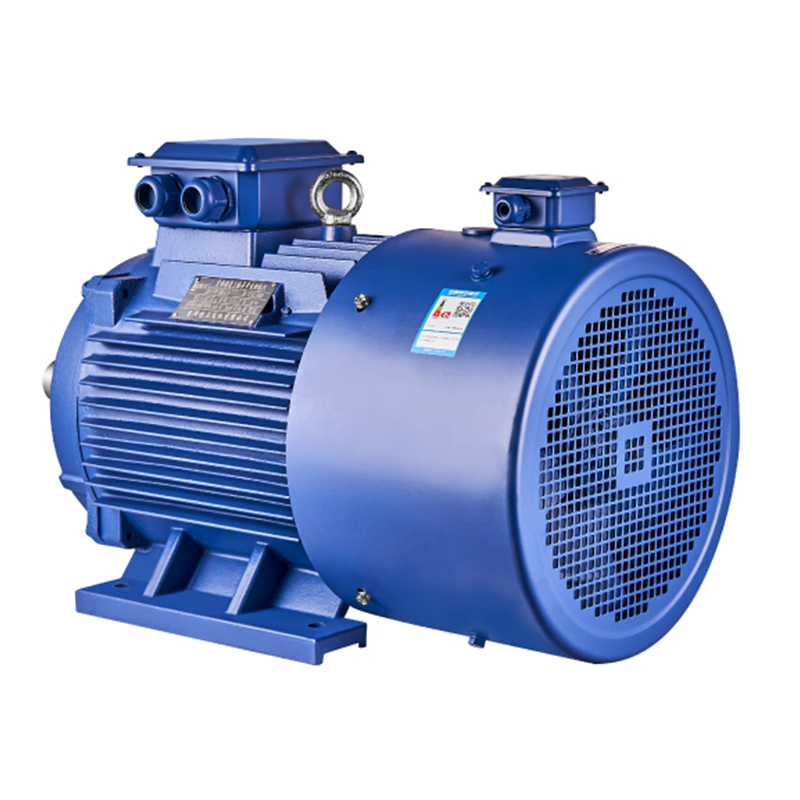

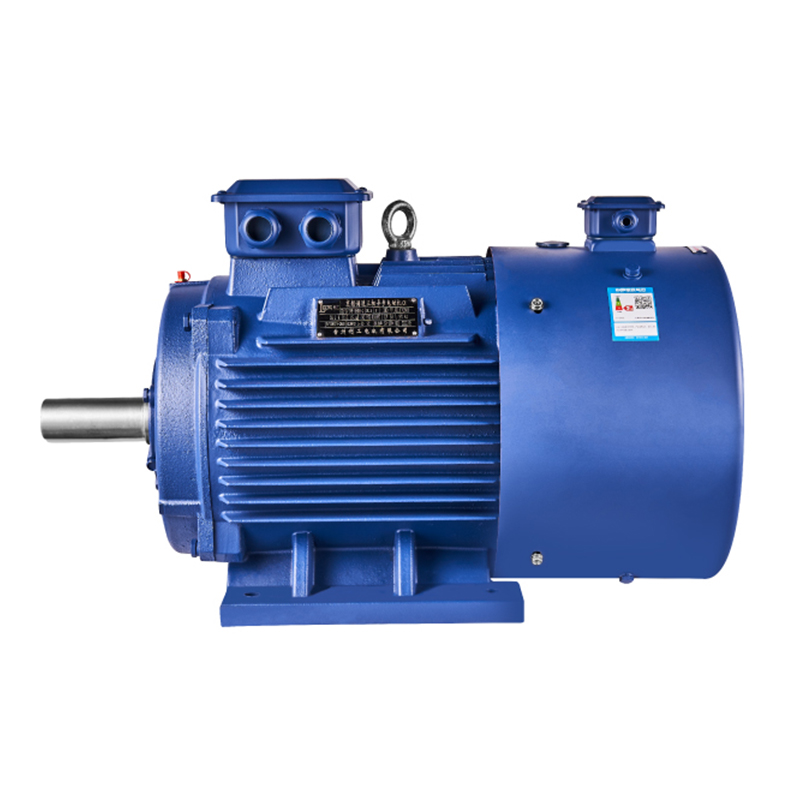

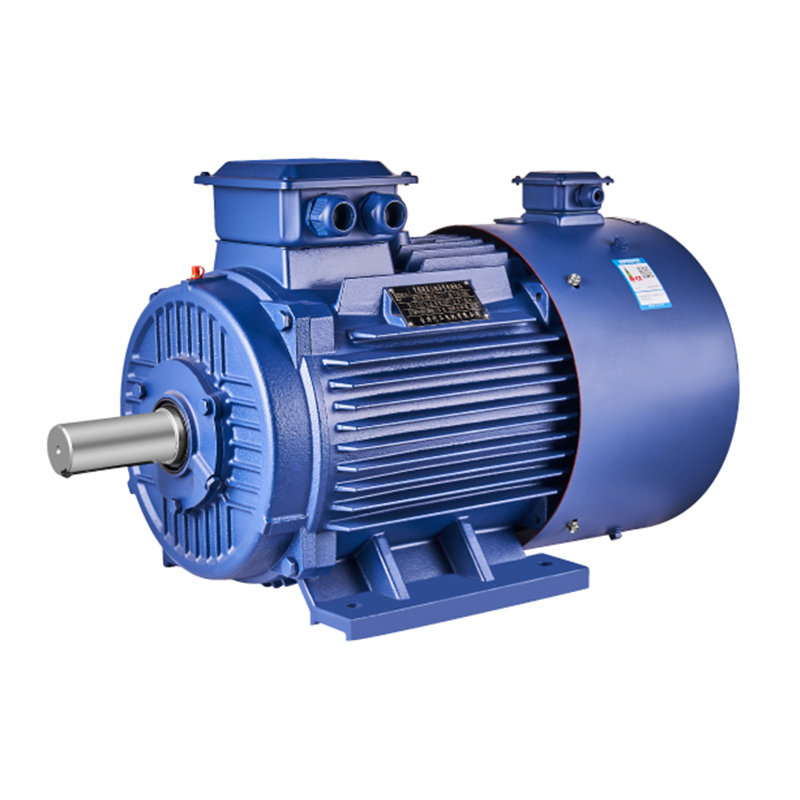

YVP Frequency Conversion Speed Control Series Motors

YVP3 series frequency conversion speed control three-phase asynchronous motor is designed and produced according to the customer's special requirements by combining the advantages of similar products at home and abroad and referring to characteristics of the YVF series frequency conversion motor.
It can be redesigned and produced in response to special customer requirements. This product can be used with all kinds of frequency conversion devices to realize infinitely variable speed regulation. The YVP3 series adopts F-class insulation, and the power level is the same as YE3.
YVP3 series adopts F grade insulation, the power level is the same as YE3, which conforms to IEC international standards, with strong interchangeability and universality, and has the advantages of safety and energy-saving, reliable operation, convenient maintenance, and so on.
It can be widely used in machine tools, fans, pumps, compressors, packaging machinery, mining machinery, construction machinery, and other mechanical transmission equipment.

Product Description:

Stand center height:

 80~355mm

Long cable installation:

 71~160mm

Power range:

 Standard installation: 0.12~315kW
 Long cable installation:
 0.37~15kW

Rated voltage:

 380V (other voltages   are subject to separate   agreement)

Rated Frequency:

 50Hz (other frequencies on request)

Protection class:

 IP54 (or IP55)

Insulation class:

 Class F

Working system:

 S1

Cooling method:

 IC411

Ambient Temperature:

 -15°C~+40°C

Altitude:

 Not more than 1000 meters

Type output Current rated
torque
Torque
range
Power
fator
Locked-rotor current Locked-rotor torque Pull-out torque Minimum torque
Rated torque
Tst/TN
Rated torque
Tmax/TN
KW (A) (N.m) (Hz) (Hz) Rated Current
Ist/IN
Rated torque
Tmax/TN
YWP3-80M1-2 0.75 1.9 2.4 35~50 50~60 6.8 2.3 2.3 1.5
YWP3-80M2-2 1.1 2.68 3.5 7.1
YVP3-90S-2 1.5 3.51 4.8 7.3
YVP3-90L-2 2.2 4.93 7 7.6 1.4
YVP3-100L-2 3 6.43 9.5 7.8 2.2
YVP3-112M-2 4 8.31 12.7 8.1
YVP3-132S1-2 5.5 11.2 17.5 8.2 1.2
YVP3-132S2-2 7.5 14.9 23.9 7.8
YVP3-160M1-2 11 21.4 35 7.9
YVP3-160M2-2 15 28.9 47.7
YVP3-160L-2 18.5 35.4 58.9 8 1.1
YWP3-180M-2 22 41.8 70 8.1
YVP3-200L1-2 30 56.5 95.5 7.5 2
YVP3-200L2-2 37 69.3 117.8
YWP3-225M-2 45 83.8 143.2 2.2 1
YVP3-250M-2   55 102 175.1 35~50 50~60 7.6 2.2 2.3 1
YVP3-280S-2    75 138 238.7 6.9 1.8 0.9
YVP3-280M-2   90 165 286.5
YVP3-315S-2    110 199  350.1 7 2.2
YVP3-315M-2  132 238 420.2
YVP3-315L1-2    160 285 509.3 7.1 0.8
YVP3-315L2-2 200 355 636.6 1.6
YVP3-355M-2  250 444 795.8
YVP3-355L-2  315 560 1002.7 7.2
YVP3-80M1-4 0.55 1.61 3.5 35~50 50~70 6.4 2.4 2.3 1.7
YVP3-80M2-4 0.75 2.08 4.8 2.3 1.6
YVP3-90S-4 1.1 2.89 7 6.6
YVP3-90L-4 1.5 3.87 9.5 6.7
YVP3-100L1-4 2.2 5.24 14 7.3 1.5
YVP3-100L2-4 3 6.90  19.1 7.5
YVP3-112M-4 4 9.03 25.5
YVP3-132S-4    5.5 12 35 2 1.4
YVP3-132M-4   7.5 16 47.7 7.3
YVP3-160M-4  11 23 70 7.4
YVP3-160L-4    15 30.6 95.5 75
YVP3-180M-4  18.5 37 117.8 7.6 1.2
YVP3-180L-4  22 43.7 140.1 7.7 2.1
YVP3-200L-4 30 59.1 191 7.1
YVP3-225S-4 37 71.7 235.5 7.3
YVP3-225M-4  45 86.7 286.5 2.2 1.1
YVP3-250M-4 55 106 350.1
YVP3-280S-4 75 41 477.5 6.8 1
YVP3-280M-4 90 167 573 6.9
YVP3-3155-4 110 201 700.3 2.1 2.2
YVP3-315M-4  132 241 840.3
YVP3-315L1-4  160 288 1018.6
YVP3-315L2-4 200 359 1273.2 0.9
VVP3-355M-4  250 449 1591.5 2
YVP3-355L-4  315 566  2005.3 0.8
YVP3-80M1-6  0.37 1.30 4.0 35~50 50~70 5.8 1.8 2.1 1.5
YVP3-80M2-6   0.55 1.79 5.9
YVP3-90S-6    0.75 2.26 7.2
YVP3-90L-6   1.1 3.18 10.5 5.9 1.3
YVP3-100L-6  1.5 4.21 14.3 2
YVP3-112M-6  2.2 5.97 21 6.2
YVP3-132S-6 3 7.94 28.6 6.4
YVP3-132M1-6 4 10.1 38.2 6.6
YVP3-132M2-6 5.5 13.4 52.5 6.8
YVP3-160M-6 7.5 17.2 71.6
YVP3-160L-6 11 24.5 105 6.9 1.2
YVP3-180L-6 15 31.7 143.2 73
YVP3-200L1-6 18.5 39.7 176.7 72
YVP3-200L2-6 22 46.3 210.1 73
YVP3-225M-6 30 61.6 286.5 6.8
YVP3-250M-6 37 74.6 353.5 7
YVP3-280S-6 45 88 429.7 7.2
YVP3-280M-6 55 106 525 2 1.1
YVP3-315S-6 75 147 716.2 6.5
YVP3-315M-6 90 173  859.4 6.6 1
YVP3-315L1-6 110 211 1050.4
YVP3-315L2-6   132 249 1260.5
YVP3-355M1-6  160 301 1527.9 6.7
YVP3-355M2-6  200 376 1909.9 6.8 0.9
YVP3-355L-6 250 470 2387.3
